Welcome to FlaxSave

Get FlaxSave up and running in a few simple steps. This guide assumes that you already installed the plugin into your project. If not, get FlaxSave here.

Guides

If you're looking for more detailed guides, check out the Manual.

Quick Start

Save Settings

The save system uses a central FlaxSaveSettings asset to manage paths, file extensions, versioning and the auto-save configuration.

This allows you to customize properties and behaviours to your project needs, without touching a single line of code.

To create and use a save settings asset:

  • In the content window, right click > New > Flax Save > Settings
  • Open your projects GameSettigs

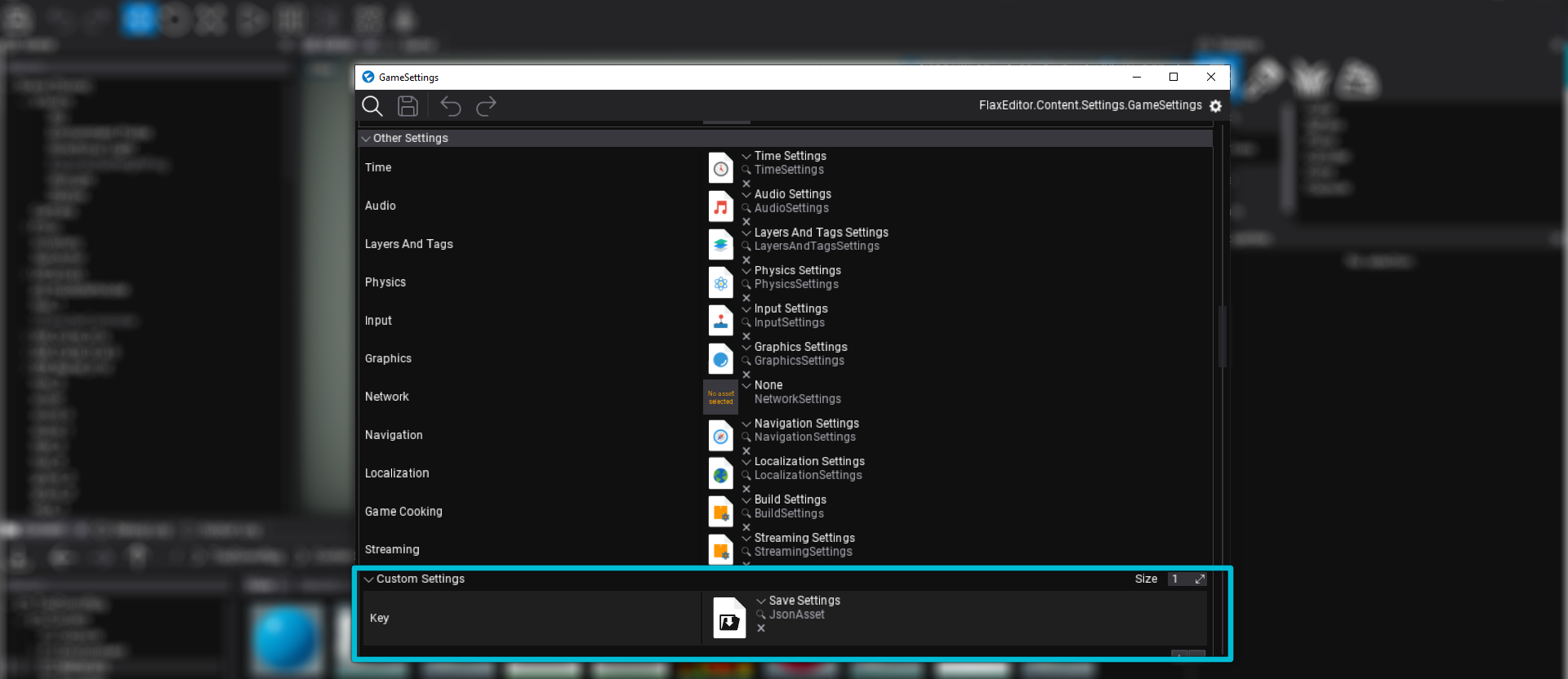

  • Add the new asset to GameSettings > Other Settings > Custom Settings


Save settings need to be linked in the GameSettings asset to take effect. This allows you to create multiple save settings assets for quickly testing different configurations, i.e. DebugSettings with shorter auto-save intervals and ReleaseSettings for the final game.

Default Settings

If you don't link any settings asset in GameSettings, FlaxSave will fall back to its default settings.

Settings Key

While Flax allows you to assign a "Key" to custom settings, FlaxSave identifies its settings by type. You can leave the key field at default or rename it however you like.


Save Actor State

The core design of FlaxSave is that every actor (and its hierarchy) should be self-contained. Each object handles its own data-serialization.

To make an object savable, you simply hook it into the SaveManager events, like this:

C#
...
using FlaxSave;

public class SavableTransform : Script
{
    public void SaveTransform(Dictionary<Guid, string> savegame)
    {
        // Savegame files are Json-based, so serialize the transform to json
        string data = JsonSerializer.Serialize(Actor.Transform);

        // Add or update the savegame entry for this object using its unique ID
        savegame[ID] = data;
    }


    public override void OnEnable()
    {
        // Subscribe to the save event.
        // This event is dispatched during manual or auto-save,
        // when all active objects are asked to provide their save data.
        SaveManager.Instance.OnSaving += SaveTransform;
    }


    public override void OnDisable()
    {
        // Don't forget to unsubscribe your methods from events!
        SaveManager.Instance.OnSaving -= SaveTransform;
    }
}

Detailed Examples

Check out for more detailed and advanced examples in your plugin folder
FlaxSave > Source > FlaxSaveExamples > Scripts


Load Actor State

The core design of FlaxSave is that every actor (and its hierarchy) should be self-contained. Each object handles its own data-serialization.

To make an object load it's previous state, you simply call the SaveManager api, like this:

C#
...
using FlaxSave;

public class SavableTransform : Script
{
    public override void OnEnable()
    {
        // Load the state from the currently loaded savegame.
        // At this point the savegame should have been loaded.
        string data = SaveManager.Instance.GetSaveData(ID);

        if (string.IsNullOrEmpty(data))
            return;

        Transform savedTransform = JsonSerializer.Deserialize<Transform>(data);
        Actor.Transform = savedTransform;
    }
}

Detailed Examples

Check out for more detailed and advanced examples in your plugin folder
FlaxSave > Source > FlaxSaveExamples > Scripts


Saving & Loading to Disk

To trigger the actual file operations, you simply call the SaveManager api. The system handles the heavy lifting, like file I/O and threading, behind the scenes.

This script demonstrates how dispatch save and load actions via key press.

C#
...
using FlaxSave;

/// <summary>Example for quick-save and quick-load setup</summary>
public class Dispatch : Script
{
    private SaveManager saveManager => SaveManager.Instance;

    /// <inheritdoc/>
    public override void OnUpdate()
    {
        // Saves the current game state
        if (Input.GetKeyDown(KeyboardKeys.F5))
            saveManager.RequestGameSave();

        // Loads the latest savegame.
        // Savegames have to be loaded before actor initilization.
        if (Input.GetKeyDown(KeyboardKeys.F6))
            saveManager.RequestGameLoad(saveManager.SaveMetas[^1].SaveName);
    }
}

The SaveMetas List

The SaveMetas list is ordered chronologically. SaveMetas[0] is the oldest save, while SaveMetas[^1] (or SaveMetas.Last()) is always the newest savegame.


Good to know

Core Concepts

To get the most out of this quick start guide, it helps to understand the three pillars of the system

  • The Save Manager Is the central hub. Use this to trigger saves, loads, read data and listen to global events.
  • Save Settings The editor-configured settings that are used by the save system.
  • Metadata Is how the system identifies and organizes save files for you to create menus around it.

Timing is Everything

Savegames should generally be loaded before actor initialization (i.e. before a level transition or before OnStart).

If you load a save while a level is already running, you need to ensure your scripts are listening to the OnLoaded event to update their states.

Threading & Safety

FlaxSave is asynchronous by design. Most operations happen on a background thread, to prevent stuttering and frame drops during gameplay.
